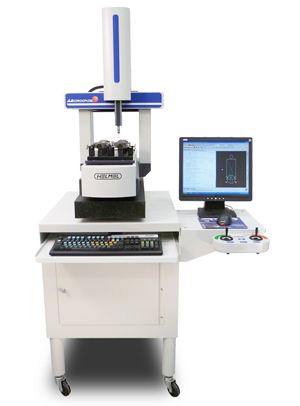

Finally, the highest CMM accuracies are available to everyone.
Microgage Advantage
Until Microgage, the cost of this level of 3D precision has been 3 to 10 times higher, and the choices have been limited to much larger machines. The need for the highest precision is often found in the smallest parts, yet there has been no choice but to buy a relatively huge CMM for these tasks, wasting money and valuable floor space.
The right Mini CMM at the right time
Microgage is modeled on the World's most precise machine tools, having a rigid fixed bridge design made of steel. And like machine tools, the mechanical bearings and guide ways, along with motors and scales, are covered and protected for durability, stability, and life-long value. Bearings are classified within 120 nanometers in X and Y, and the entire structure is stress-relieved and thermally shielded inside and out, as well as vibration dampened.
Accuracy is intrinsic: there is no software error correction, just pure physical precision. If high precision in small and medium sized parts is your game, Microgage is the answer made simple, whether in the lab or for production. In a world going micro, the Microgage tabletop CMM has arrived!
Scanning solution in a small package
The Microgage can be configured for scanning operations by adding the options; Renishaw SP25M scanning system, PM1 Helmel specific Probe Head adapter and UCC2 universal CMM controller.
Standard Features
- Fixed bridge design
- Stainless steel moving table
- High precision ball cages on hard and ground ways
- All bearings, ways and scales are covered
- Non-contact optical scales on steel structure
- .1µm (.000004") Resolution
- M6 Clamping inserts
- Built in PM1 with TP20 Probe kit (included)
- Ergonomically designed desk
- Granite sub base for stability
- Rugged 3-axis joystick pendent
- Latest computer hardware
- Flat panel LCD Monitor
- Keyboard with GEOMET Keystroke Magic key labels
- GEOMET 101 DCC Software
- ½"Ø Calibration Sphere
- 1 Year Warranty
- Online access to software upgrades
Options
- Renishaw TP-200 Probe
- SP-25 Scanning System with Renishaw UCC2 controller
- Renishaw 2, 3 or 4 port MCR20 stylus rack
- GEOMET 301
- Steel Base/Industrial Cabinet- houses controller and PC 32" L x 24" W x 35" H plus monitor shelf (deletes desk)
- Color Printer
- ProLink QC-Calc SPC Software
- Vibration isolation pads
- UPS battery back-up system
- Turnkey Systems - have Helmel complete fixture design/build and part programming for your projects. We can deliver your new CMM ready to run
- Integrate your Helmel CMM into a cell or production line with our I/O Option to communicate with automation and provide output for process control
